Introduction - Magazine Assembly

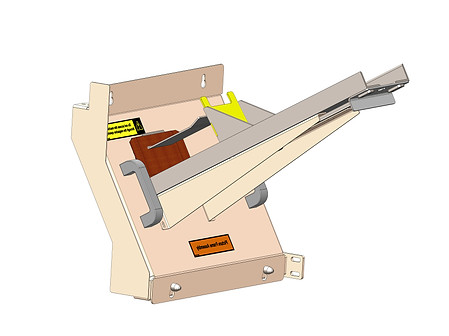

1. 3D Model
-
Product Contact Parts - MS Powder Coated RAL 7035
-
Product Non-Contact Parts - SS304
​
2. Magazine operation
-
The Cartons are stacked in the Magazine Assembly with help of the Picture Frame.
-
The Loaded Magazine is capable of running a minimum 10 Mins to run the Machine.
3. Maintenance
Important Precautions: -
​
READ this manual before operating or servicing this equipment.
​
-
ALWAYS remove power and wait at least 30 seconds before connecting / disconnecting any internal harnesses. Failure to observe these precautions may result in damage to, or destruction of the equipment.
-
ALWAYS take proper precautions when handling static sensitive devices.
-
SAVE this manual for future reference.
-
DO NOT allow untrained personnel to operate, clean, inspect, maintain, service or tamper with this equipment.
-
DO NOT connect or disconnect any digital or analogue components to the equipment with power connected or damage may result.
Refer click the below Maintenance Schedule for Magazine Assembly.
​
