Operation of Machine
1. Introduction

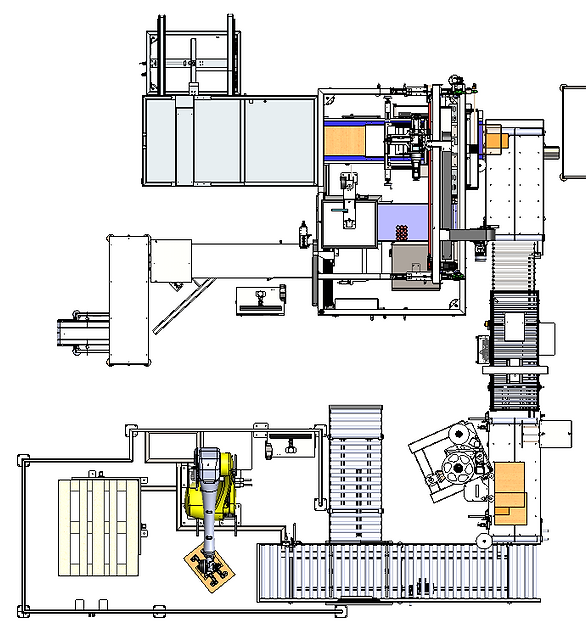

The 16808 Bottle Case Packer and Robotic Palletizer was designed and manufactured by Bector Automation RML Engineering India Pvt. Ltd. for Lupin Limited.
Shrink-wrapped bottle bundles are received from the customer conveyor onto the modular infeed conveyor. The bundles are then transferred to the collation conveyor using a pneumatically operated pusher cylinder.
At the collation conveyor, the bundles are arranged into the required matrix configuration. The formed matrix passes through the aggregation system, where scanning and verification are carried out. Accepted matrices are transferred to the picking station, while rejected matrices are diverted to the rejection bin using a pneumatic rejection mechanism.
In parallel, flat shippers are manually loaded into the magazine section. A plucker mechanism picks the shipper from the magazine and transfers it to the flap folding station. The shipper is erected, the flaps are folded using the flap-folding mechanism, and the shipper is transferred to the bottom taping unit for sealing preparation. The erected blank shipper is then conveyed to the filling station.
At the filling station, the accepted bottle bundle matrix is picked by the gantry system and accurately placed into the erected shipper. The filled shipper is then transferred onto the flat belt conveyor, where top taping of the shipper is carried out.
After taping, a label is applied at the corner of the shipper using the labelling applicator system. The loop-closing scanner then scans and verifies the shipper before further transfer.
The verified shipper is conveyed to the power roller conveyor. Rejected shippers are diverted onto the rejection conveyor using a pneumatic pusher cylinder, while accepted shippers proceed to the palletizing section.
Accepted shippers are picked by the robotic palletizing system and placed onto the pallet according to the predefined pallet matrix pattern. Once the pallet is filled, the safety guard is opened manually, the filled pallet is removed manually, and an empty pallet is positioned for the next cycle.
1.1. Major Sub-Assemblies
ListNote: Click on the assemblies for more details about the sub-assemblies.

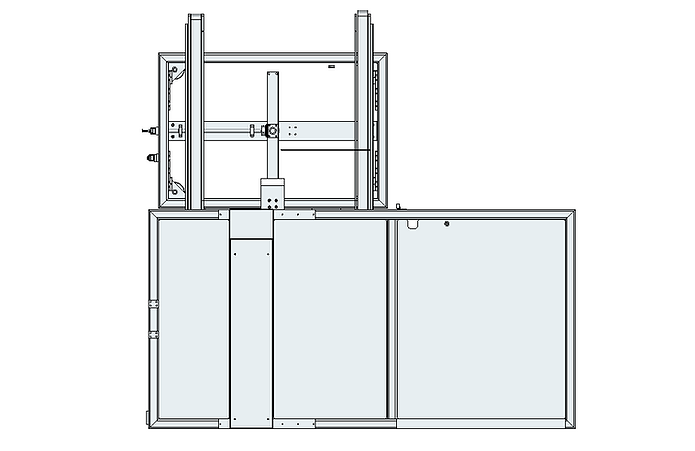

Case Erector
2. Warranty
2.1 Machine Guarantee
Bector Automation RML India Pvt Ltd guarantees this machine to be free from defects in material or workmanship under normal operation, as defined in the contract, for a period of 12 months following takeover.
Bector Automation RML India Pvt Ltd agrees under this warranty to repair or replace at our discretion any original part that fails. This includes all costs of labor on-site provided by Bector Automation RML India Pvt Ltd or our authorized agent for 6 months following the takeover.
This warranty will not cover any section of the machine that has been modified by any party other than Bector Automation RML India Pvt Ltd. Issues caused by improper operation or maintenance will not be covered.
2.2 Software Guarantee
All software and software engineering are guaranteed for a period of 90 days following the takeover. Request for Warranty Assistance In the event of a warranty fault, it is imperative that the customer gathers as much information as possible about the fault including a part number identification from section 7 of this manual and contact rml without delay.
2.3 Exclusions
The warranty excludes normal consumable items such as vacuum cups and glue nozzles. Also excluded is normal wear and tear to items such as bearings and conveyor belting.
Our contact details:
Bector Automation RML India Pvt. Ltd. Plot No. G/9/2/3. Phase No.-3, Nighoje,
Tal. - Khed, Dist. - Pune 410 501,
Maharashtra, India
P +91 7506506099
