Operation of Machine
Introduction - Enclosures
1. Panel Dimensions
1200
600
1800
1400
200
2. Gear plate Layout
Note: Click on the Components for the Manuals
MPCB
Terminals
3. Maintenance
Important Precautions: -
​
READ this manual before operating or servicing this equipment.
​
-
ALWAYS remove power and wait at least 30 seconds before connecting / disconnecting any internal harnesses. Failure to observe these precautions may result in damage to, or destruction of the equipment.
-
ALWAYS take proper precautions when handling static sensitive devices.
-
SAVE this manual for future reference.
-
DO NOT allow untrained personnel to operate, clean, inspect, maintain, service or tamper with this equipment.
-
DO NOT connect or disconnect any digital or analogue components to the equipment with power connected or damage may result.
Refer click the below Maintenance Schedule for Control Panel.
​
4. Risk Assessment
Risk Assessment or HAZOP, or a Hazard and Operability Study, is a systematic way to identify possible hazards in a work process. In this approach, the process is broken down into steps, and every variation in work parameters is considered for each step, to see what could go wrong.
​
Please refer the below attachment for HAZOP Document.
​
Introduction - Chassis and Guards
1. Introduction - Chassis
1.1 3D Model
1.2 Chassis Operation
Chassis provides support to the different sub-assemblies.
1.3 Maintenance
Important Precautions: -
​
READ this manual before operating or servicing this equipment.
​
-
ALWAYS remove power and wait at least 30 seconds before connecting / disconnecting any internal harnesses. Failure to observe these precautions may result in damage to, or destruction of the equipment.
-
ALWAYS take proper precautions when handling static sensitive devices.
-
SAVE this manual for future reference.
-
DO NOT allow untrained personnel to operate, clean, inspect, maintain, service or tamper with this equipment.
-
DO NOT connect or disconnect any digital or analogue components to the equipment with power connected or damage may result.
Refer click the below Maintenance Schedule for Chassis.
​
2. Introduction - Guards

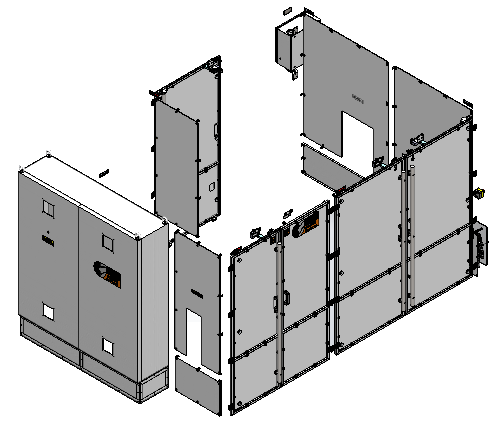

2.1. 3D Model
Door Material - Polycarb
Safety Door Locks - SI-LS42DMMHF (Banner Make) & 5 qty
2.2 Guards Operation
Guards cover the equipment and provide safety protection for operation of the equipment.
2.3 Spare Parts
Note: Click on the Description for detail manual
Sr.No. Description Part No. Critical Spare Recommended
Spare
1 . Solenoid Locking Interlock SI-LS42DMMHF SI-LS42DMMHF X
